星巴克保溫杯塑料杯滾筒絲印機印刷效果鮮艷，速度快，節省人工，價格優惠，環保防塵除靜電，適合大批量生產專業印刷適合金屬、玻璃、陶瓷、塑膠、木材、皮革等材質的產品的精密平面印刷。廣泛適用于：電子電器，廣告，包裝印刷，運動器材，玩具，文具禮品等行業。產品例如PCB、LCD、EL、IC、SMT等。同時該機型也適宜其他精密印刷，貼紙、陶瓷花紙、薄膜開關（按鍵）、海報、汽車玻璃、儀表、建筑飾板、銘板、廣告牌標牌等。

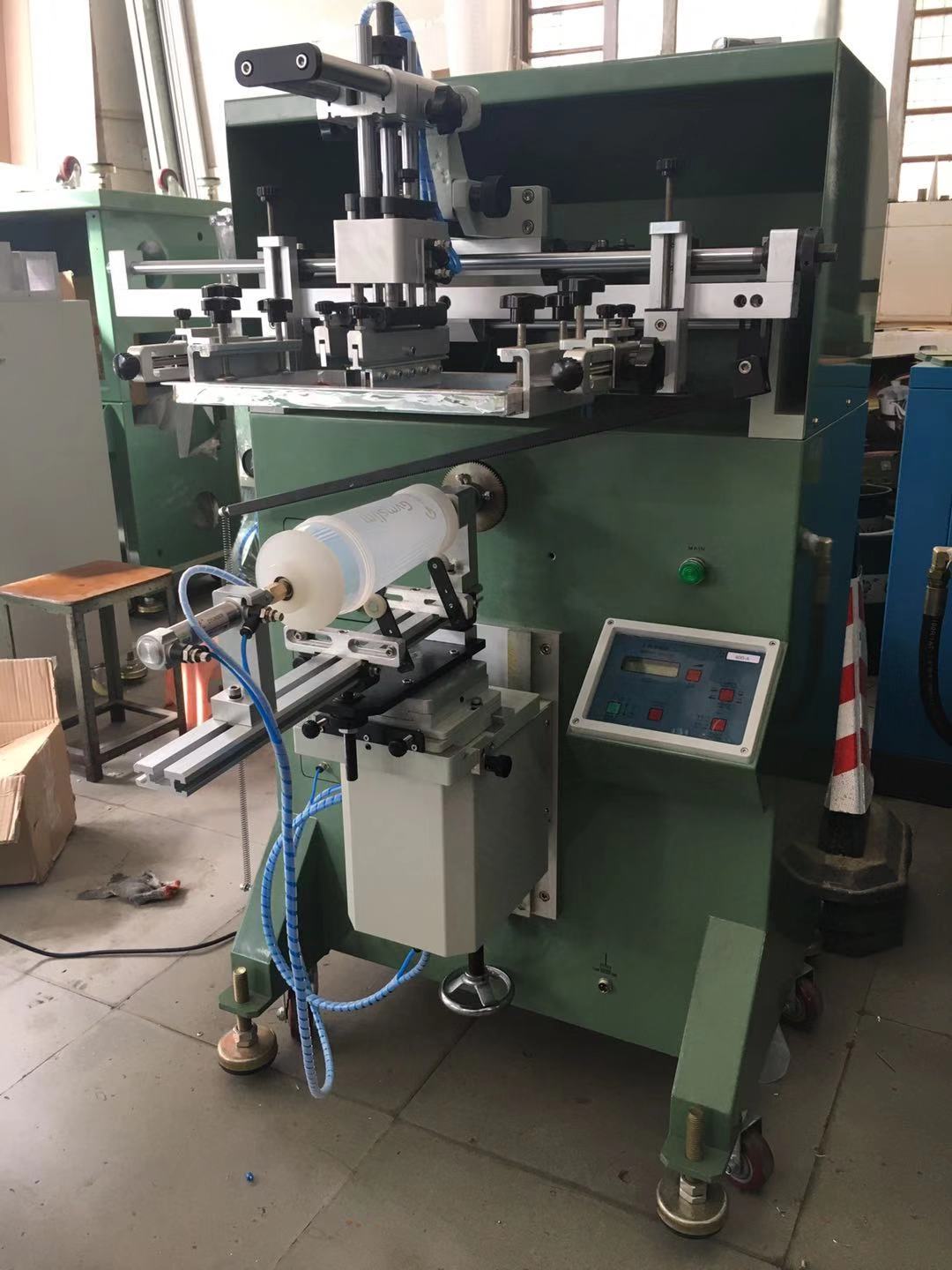

400C round surface screen printing machine
Product Brief
400C round screen printing machine is a universal screen printing machine. Can be widely used in daily supplies, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry and food packaging and other industries.
First, this round surface printing machine has the following characteristics:
1, full-featured, capable of printing cylindrical surface, conical surface and large arc surface.
2. Each position is electric eye sensor, accurate position, excellent performance.
3, the workbench can be fine-tuned in terms of left, right, front, back, and angle, and the positioning is accurate and stable.
4, automatic start function, remove and wash the net frame more convenient.
5, scraper left and right movement using the guide structure, lighter and smoother to improve the printing quality.
6. The lifting and lowering of the frame adopts the guide structure of the guide bar of the round steel, which has high precision and smooth movement.
7, automatic network function, the printing quality is higher.
8, the circuit part of the Taiwan Yangming control part, the use of a more stable
9. The blade is driven by pneumatic and synchronous belts, which makes the operation more stable.
10, automatic suction function, suitable for thin workpiece printing.
11, stable performance, the entire machine adopts the world's most advanced microcomputer controller control.
12, according to customer needs, preset two function programs, single-cycle printing and full-auto printing.
13. Adopting the latest pneumatic components from Taiwan Yadeke Company and Japan (SMC) Company, the power is smooth, strong and durable.
14, special shock absorber device, the machine operates very smoothly.
15. The workbench adopts cast aluminum fine tabletop, printing accuracy is higher.
16. The operation panel is more convenient and quick to use, and the screen printing function can be directly used for agile and convenient use.
17.
Second, technical parameters:
1, printing color 1 color
2, single cycle can
3, continuous exercise can
4, project count can
5, speed adjustment can (0 ~ 9 adjustable)
6, the delay of each part can be (0 ~ 9 adjustable)
7, printing speed 1000 times / hour
8, the largest frame 350mmX500mm
9, the largest printing area Φ127mm screen printing diameter
10, the frame on the trip 160mm
11, scraper left and right stroke 400mm
12, scraper, oil scraper up and down stroke 25mm
13, drive pneumatic
14. Control System Microcomputer
15, control voltage 12VDC
16, power supply voltage 220VAC / 1 phase
17, connect the load 20W
18, pneumatic supply 6bar
19. Air Consumption / Cycle 2.1L
20, body dimensions 720mm X 760mm X 1680mm
21, weight 170Kg
Third, the machine operation safety performance:
The 400C round screen printing machine conforms to the latest engineering styles and is absolutely reliable if used as required.
The machine is equipped with an emergency switch: When the emergency switch is pressed in the event of an emergency, the machine is immediately powered off. Returning to the starting position, when the emergency switch is turned off after things are done, it can be safely started and returned to normal.
However, the following situations may still cause danger!
(1) When the machine needs to be moved or repaired, the power source and air source must be cut off.
(2) When adjusting or cleaning the oil scraper, follow the steps.
(3) Enhance fire awareness and equipped with fire fighting equipment.
